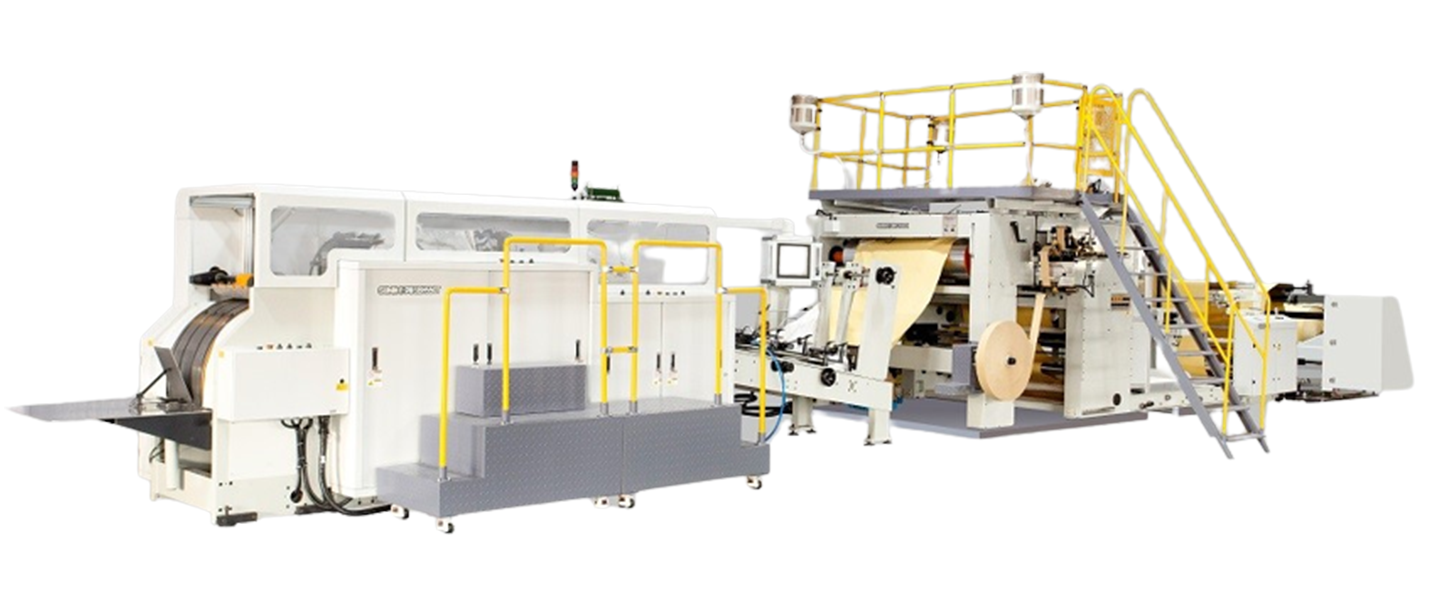

Internal Flat Handle Bag Making Machine
INH550TB-518
Specifications
swipe your finger
| Model | INH550TB-518 | |
| Paper Roll Width Range | 710 - 1510mm (670-1510mm without handles) | |
| Max. Paper Roll Diameter | ≤1500mm | |
| Material Core Diameter | 3inch (76mm) | |
| Paper Thickness | 80-150gsm | |
| Tube Cut Off Length |
360 - 770mm (with handle inside bag or without handle) 360 - 670mm (flat handle stand up) |
|
| Bag Body Width | 240 - 540mm (220-540mm without handle) | |
| Bottom Size | 100 to 280mm | |
| *Max. Speed |
Without handle: 80 - 130 bags/min
|
With handle: 80 - 120 bags/min
|
| Bag Dimensions,Adhesive Quality,Operator Knowledge, % Moisture,Type and Basis Weight of Paper Can Affect Machine Speeds | ||
| Total Power | 36.3kw | |
| *Weight of Machine | ≈27000kg | |
| Overall Dimension | L 18,300 mm x W 5,500 mm x H 2,800 mm | |
| Internal Flat Handle Dimensions |
a. Paper Thickness (Flat Handle) b. Paper Thickness (Handle Paper Patch) c. Handle Paper Patching Roll Diameter d. Handle Material Core Diameter |
80gsm-100gsm 80gsm-100gsm Dia. 1200mm Dia. 76mm |
| Dimension of flat handle |
|
A: Flat Handle Height: 100 mm B: Paper Patching Width: 52 mm C: Paper Patching Length: 170 mm D: Internal Flat Handle Pitch: 109 mm E: Internal Flat Handle Width: 16 mm |
| Bottom Folding |
 |
|
