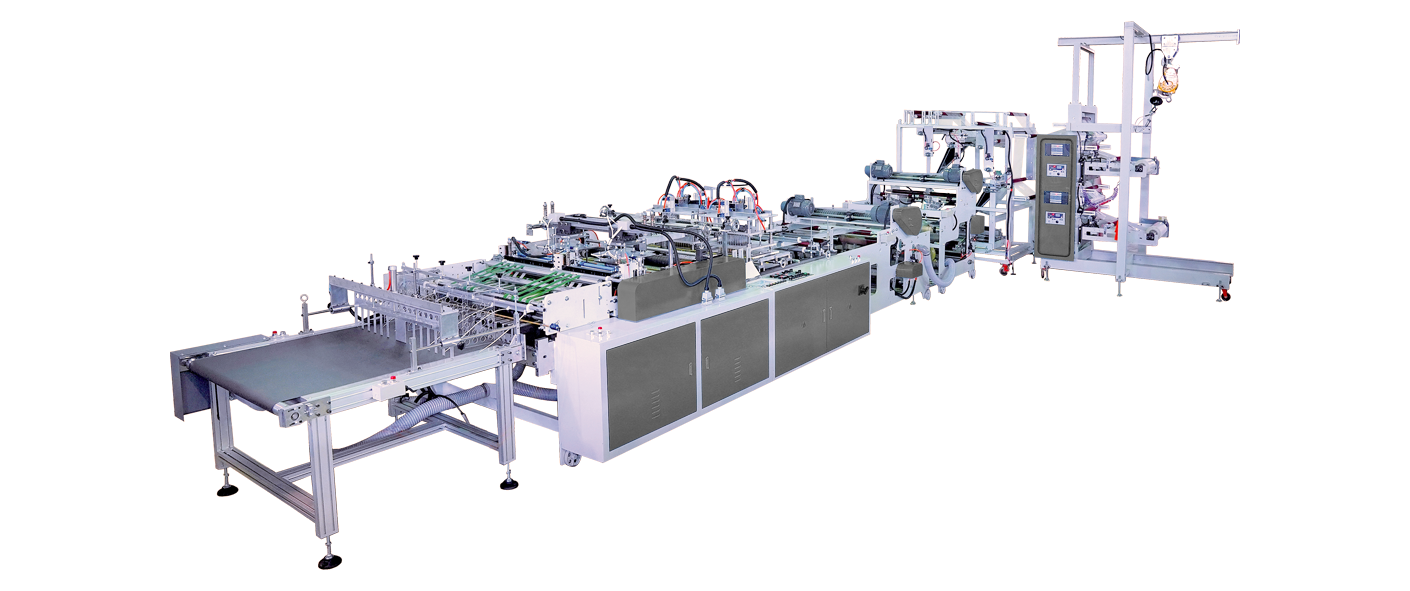

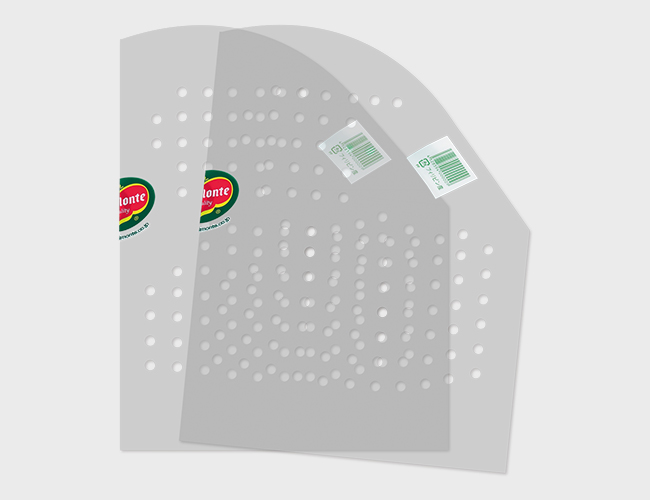

2 Lanes J Shape (CP) Banana Bag Holes Punching and Sealing Machine
MGA-17B2-800SP
Gallery
Specifications
swipe your finger
| Model | MGA-17B2-800SP | |
| General Machine Specifications | ||
| Machine Dimension | 10,807 (L) x 4,425 (W) x 3,211 (H)mm | |
| Machine Weight | 5,682 kg | |
| Required power | 22.8 kw | |
| Machine Performance | ||
| Feed Material |
P.P. / P.E. Tube Blown film (Cast form is option) |
|
| Single Layer Film Thickness | 0.03 - 0.08 mm | |
| Effective Bag Width | 250 - 400 mm | |
| Effective Cutting (Feeding) Length | 150 - 420 mm | |
| Output | 160 - 240 pcs/min | |
