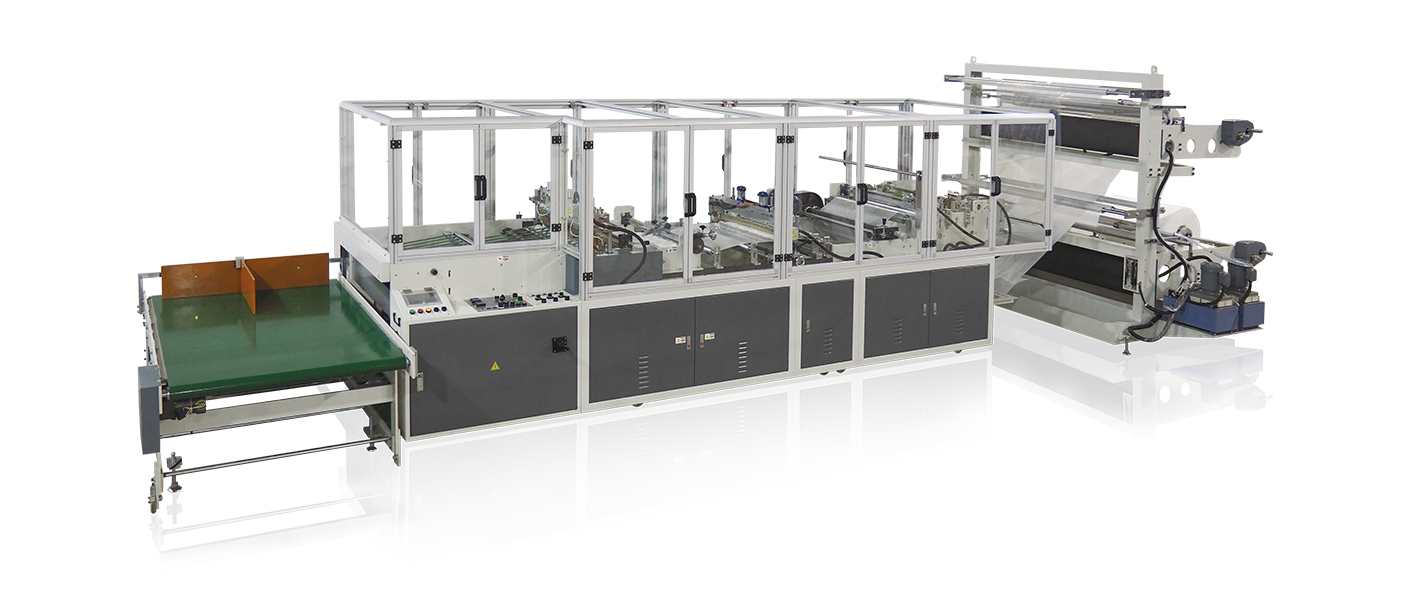

Twin Lines Air Bubble Pouch Making Machine



swipe your finger

Model MGA-25-800B
Feed material
Air bubble film, PE, EPE
Single layer film thickness 50 - 100 gsm
Bubble size Dia. 5 - 15 mm
Air bubble film diameter Max. 1,200 mm
Air bubble film width Max. 700 mm

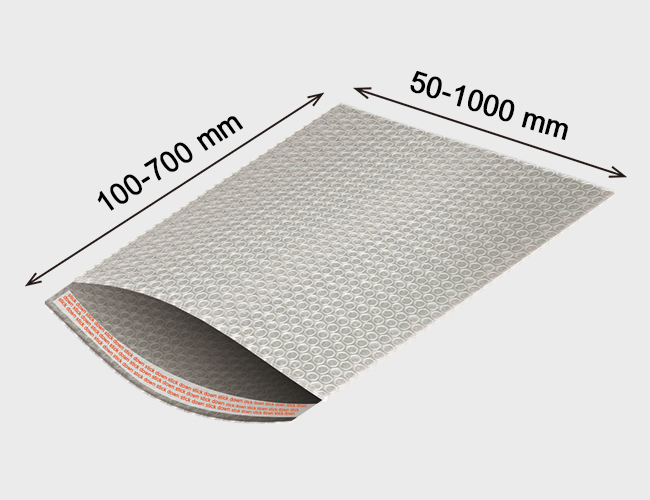

Available size
a. Effective bag height
b. Effective bag width
100 - 700 mm
50 - 1,000 mm
Output 20 - 75 cycle/min (depend on thickness and bag size)
Machine dimension 9,900 (L) × 2,600 (W) × 2,200 (H) mm
Machine weight 4,724 kg
Required power 6 kw
Remarks As we continuously keep working on research and improvement, we preserve the right to change all of the specifications, design and characteristics on this catalogue without notice.
