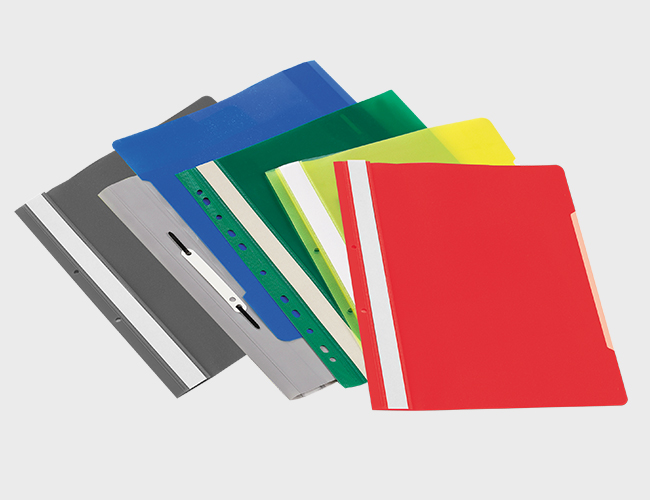

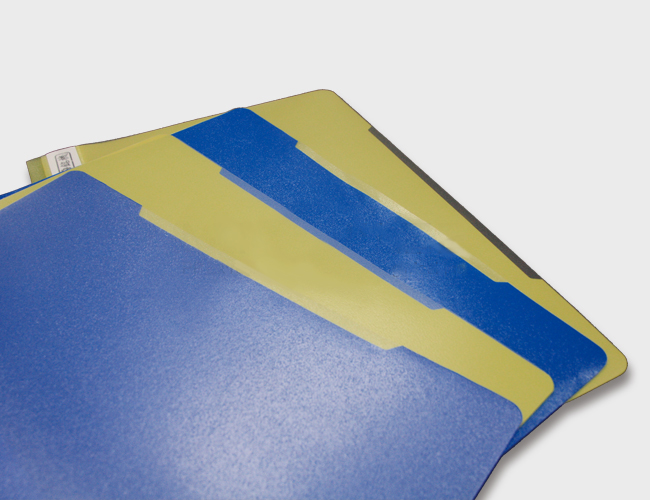

- Quotation folder, presentation Folder, Flat File is consisted of multiple stacked rolls of PP film material. This machine is designed especially for the flat file made from the feeding plastic material (CPP) to the finished product.

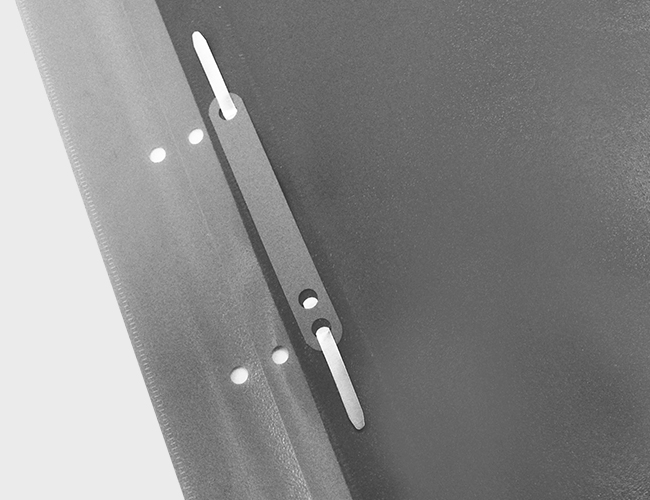

- The metal fastener and the plastic compressor parts are made with die punching mold. The material fastener is attached by pneumatic pressure.
- Manufacturing of the presentation folder is fully in automation, from material feeding → fastener inserting → plastic compressor inserting → ultrasonic welding → cutting to produce the finished product.
- Each unwinding device is equipped with the edge position controller to make sure the position of the feed material remains precise.
- This machine is equipped with various precision and durable punching molds with a very low breakdown rate, connecting to the servo motor and digital computing unit for length control to allow a very precise punching position.
Quotation Folder Making Machine
swipe your finger
|Effective unwinding diameter||500 mm|
|Effective thickness||0.08 - 0.2 mm|
|Output||30 - 45 pcs/min|
|Machine dimension||8,400 (L) × 2,550 (W) × 2,300 (H) mm|
|Machine weight||4,900 kg|
|Required power||16 kw|
(1) 3'' air shaft of unwinding : 3
(2) Barcode printing with mark sensor (effective printing length: 65 mm) : 1
(3) Mark sensor (SICK) : 1
(4) In-line folding device(after cutting) : 1
(5) Precise edge punching mold : 1

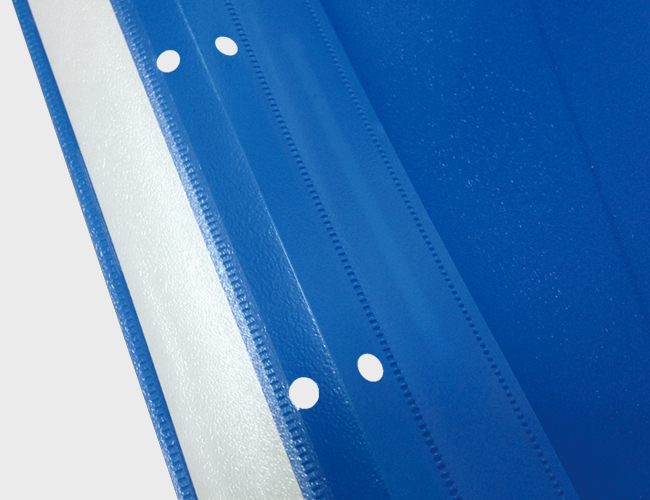

(6) Precise 4 holes punching mold : 1
(7) Hot stamping device (20 × 50 mm2) : 1
(8) A5 welding mold : 2 pcs
|Remarks||As we continuously keep working on research and improvement, we preserve the right to change all of the specifications, design and characteristics on this catalogue without notice.|
