- This machine can make all kind of book cover type with P.P and P.V.C.
- It is not only has heat sealing device to seal the edge but also has ultrasonic welder can weld the edge firmly.
- Thermal transfer printing device is the new system to print the barcode on the product. It can print the barcode as you want.
- Up and down interchange counting collector can collect the finished products easily.

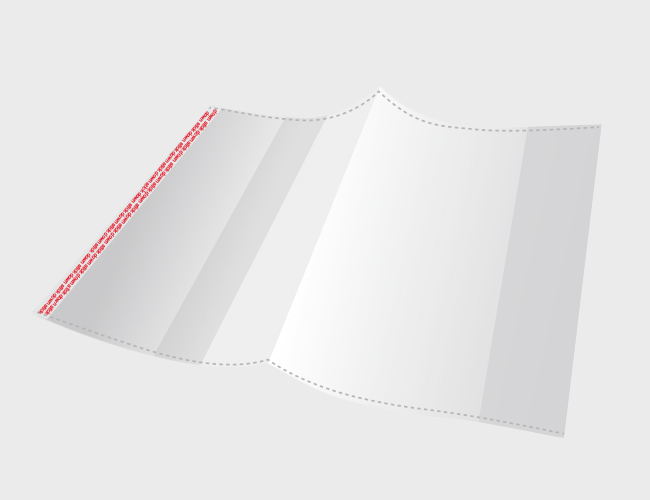

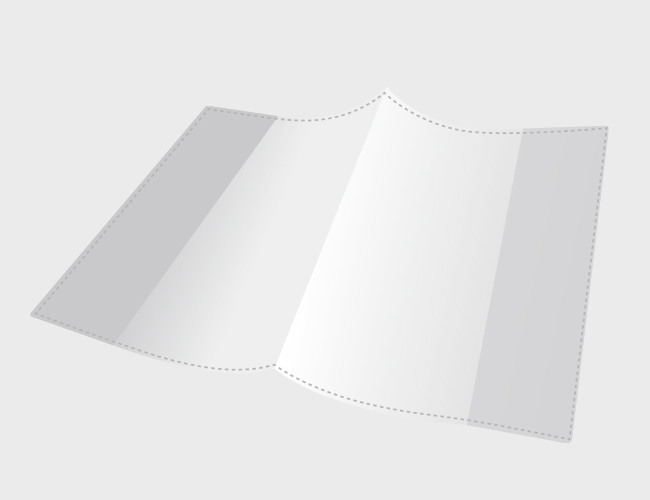

All Types Book Cover Making Machine
MGA-70-700B
Features
Specifications
swipe your finger
| Model | MGA-70-700B | |
|
Feed material |
PP, PVC | |
| Effective cutting width | 150 - 600 mm | |
| Effective ultrasonic welding width | Max. 450 mm | |
| Effective cutting length | 90 - 550 mm | |
| Single layer film thickness | 0.035 - 0.1 mm | |
| Machine dimension | 7,500 (L) x 1,700 (W) x 2,000 (H) mm | |
| Output |
(1) PP heat sealing type : 60 - 100 pcs/min (2) PVC ultrasonic welding type : 40 - 70 pcs/min |
|
| Required power | 10 kw | |
| Optional equipment |
(1) Printing sensor(photo cell): 1 (2) 3” air shaft of unwinding: 1 (3) Electronic E.P.C: 1 (4) Auto. Tension controller: 1 (5) Precise cutting mold with R corner design: 1 (6) Thermal transfer printing device: 1 |
|
| Remarks | As we continuously keep working on research and improvement, we preserve the right to change all of the specifications, design and characteristics on this catalogue without notice. | |
