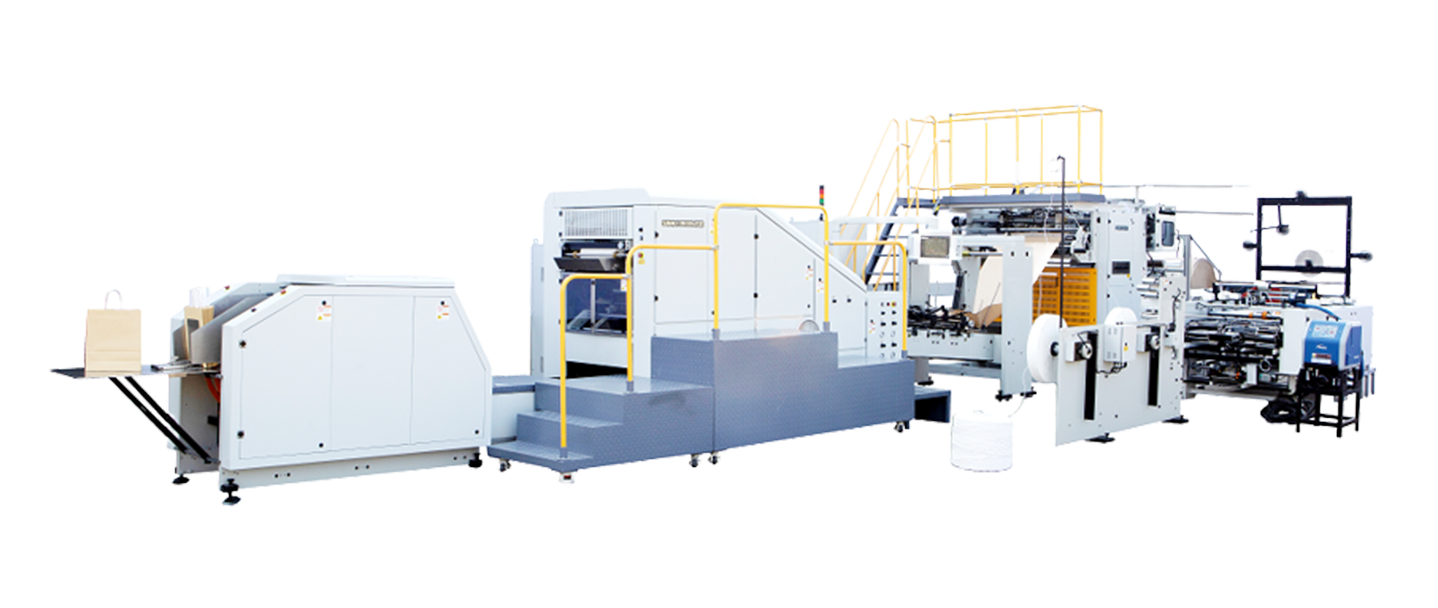

Twisted Handle Shopping Bag Making Machine
TWH150B-2
Specifications
swipe your finger
| Model | TWH150B-2 | |
| Paper Roll Width Range | 420 - 640mm (280-640mm without handles) | |
| Max. Paper Roll Diameter | ≤1500mm | |
| Material Core Diameter | 3inch (76mm) | |
| Paper Thickness | 40-135gsm | |
| Tube Cut Off Length | 191 - 320mm (191-430mm without handle) | |
| Bag Body Width | 120 - 200mm (80-200mm without handle) | |
| Bottom Size | 50 to 100mm | |
| *Max. Speed |

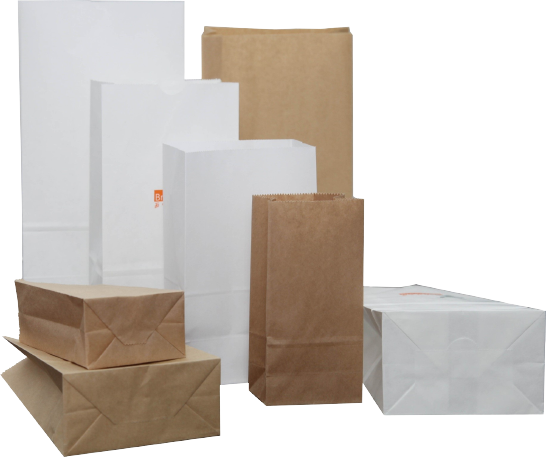

Without handle: 250 bags/min
|

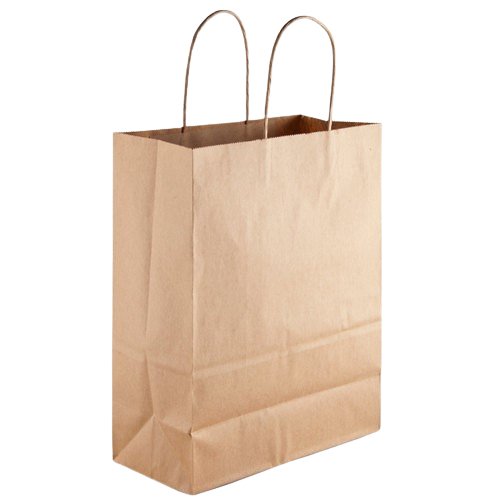

With handle: 80 - 130 bags/min
|
| Bag Dimensions, Adhesive Quality, Operator Knowledge, % Moisture, Type and Basis Weight of Paper Can Affect Machine Speeds | ||
| Total Power | 24.5kw | |
| *Weight of Machine | ≈13000kg | |
| Overall Dimension | L 12,000 mm x W 5,500 mm x H 2,500 mm | |

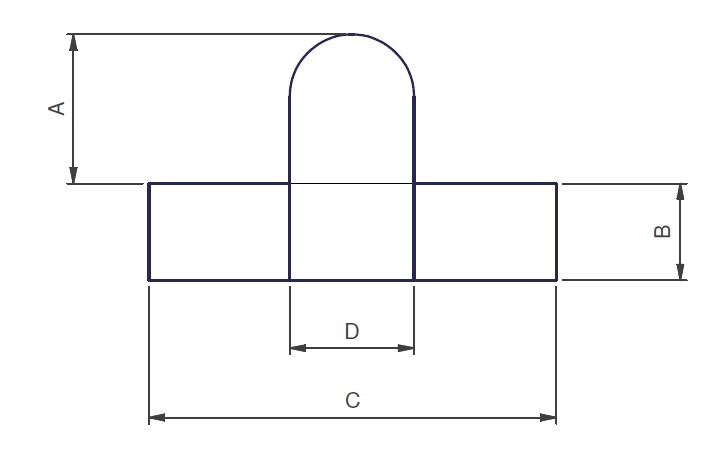

| Twisted Paper Cord Handle Dimensions |
|
A. Handle Length (Variable): 102/115/125mm B. Patch Width: 40 - 50mm C. Handle/Patch Length: 95.25mm D. Handle Width:47.6mm |
| Paper Cord Handle Material Specifications (Suggested) |
a: Paper Patch Width ( Master Roll ) b: Patch Paper Basis Weight c: Patch Paper Roll Diameter d: Patch Paper Roll Core Diameter e: Paper Cord Diameter (suggested) |
80 - 100 mm 90-135g/m² ( recommend:110-120gsm) 1200mm Max. 76mm 3 - 4.5mm |

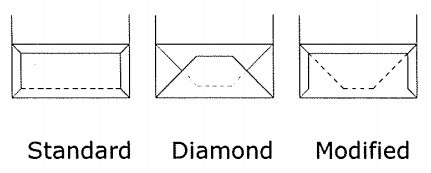

| Bottom Folding |
Main Machine and Bottom Forming Section |
|
