Pull Bow Ribbon Making Machine
MGA-29A-160
Features

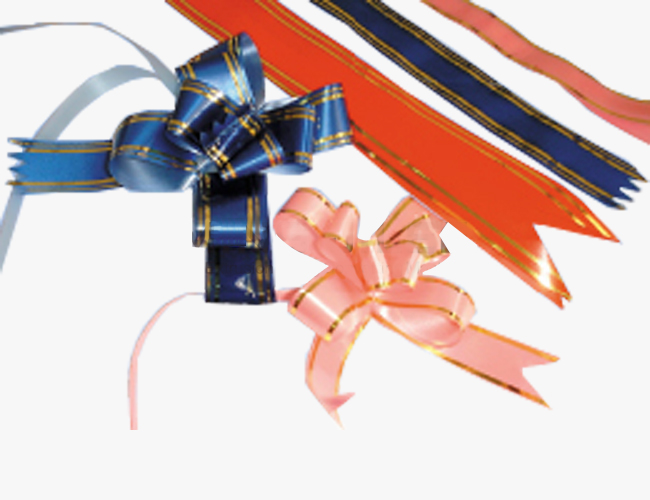

The Pull Bow Ribbon Making Machine by Ming Jilee is designed for producing PP, BOPP, and pearl material pull bow ribbons, featuring an in-line slitting device that cuts multiple ribbons per cycle with a cycle rate of 5-35 cycles/min. For example, producing 20mm wide ribbons yields 5 pieces per cycle, resulting in an output of 100 pieces/min. The machine is equipped with a Japanese servo motor for precise cutting and an ultrasonic welding system for securing pull bow stop dots. It can cut ribbons up to 100mm wide, allowing for 5 pieces of 20mm ribbons per cut. An optional auto conveyor system makes packaging easier by helping operators collect finished ribbons efficiently.
Gallery
Specifications
swipe your finger
| Model | MGA-29A-160 | |
| Available width | Max. cutting width 100 mm | |
| The standard machine is including 1 set of cutting mold. Each width of finished product is required one cutting mold and welding mold | ||
| Cutting size range | Max. length 800 mm | |
| Total welding thickness | 0.08 - 0.20 mm | |
| Output | 5 - 35 cycle / min (depend on feeding length) | |
| Machine dimension | 4,500 (L) × 940 (W) × 2,100 (H) mm | |
| Machine weight (N.W.) | 1,700 kg | |
| Required power | 6.5 kw | |
| Cutting mold and welding mold for each width | 1 set | |
