PE Foam Sheet Holes Punching, Slitting & Cutting Machine

MGA-79-SERIES

PE Foam Sheet Holes Punching, Slitting & Cutting Machine

Features

  1. EPE foam cutting machine is special design for buyer to cut EPE foam sheet / Air bubble film more efficiently.
  2. This machine is special design for cutting EPE foam sheet and in-line hole punching on same machine.

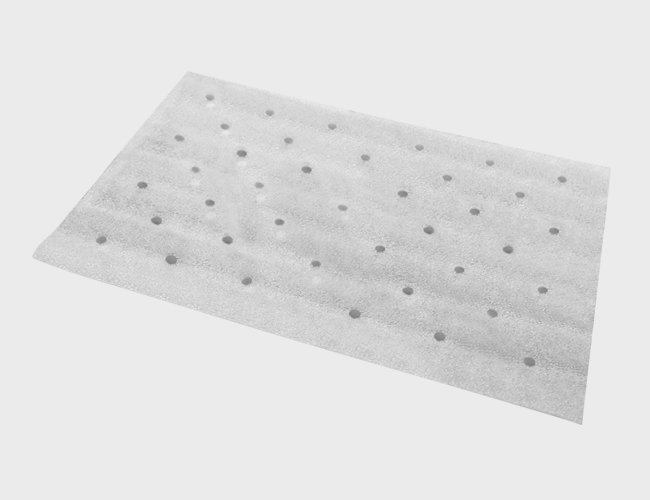

  3. For small dia. of hole, like 8 mm hole. We can punch the holes and remove the holes fully automatically. For the numerous of waste, MING JILEE design the vacuum system to collect all the waste. It is very easy to collect the waste by collecting 1 bag.

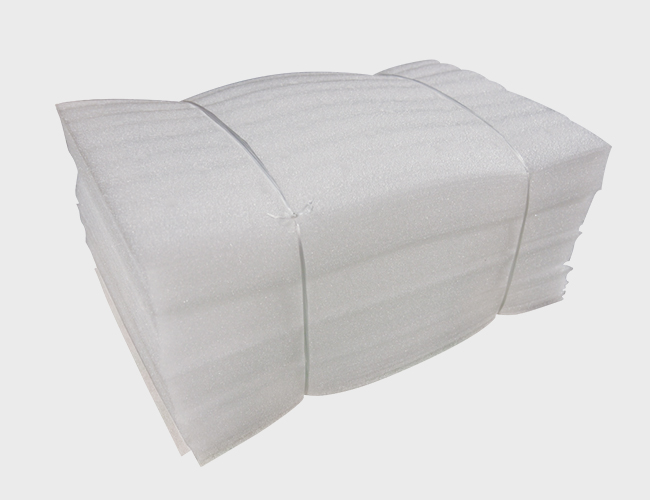

  4. Machine is equipped auto conveyor to get very good stacking result on the finished product. The operator can take the stack sheet to next process for tying or put in the carton box.
  5. We offer the optional equipment for the cold pin stacking. If the buyer need to cut long sheet and request to get good stacking for the long sheet, then they can choose this additional solution.

Specifications

swipe your finger

Model MGA-79-1850 MGA-79-2200
Available Material
Air Bubble Film EPE Foam
Thickness (mm)
Air Bubble Diameter : 5 -15 EPE Foam : 0.8 - 4
Sheet Size Range (L x W mm) 100 - 600 x 100 - 1,650 100 - 600 x 100 - 2,050
Output (cycle/min) 50 - 80
Machine Dimension (L x W x H mm) 10,000 x 3,000 x 2,200 9,700 x 3,170 x 2,240
Power Consumption (kw) 12.5 14
Optional equipment:  (1) Off-line tying machine: 1 set
(2) Edge trimming and rewinding device: 1 set
(3) The complete of holes punching mold for different hole punching design
Remarks As we continuously keep working on research and improvement, we preserve the right to change all of the specifications, design and characteristics on this catalogue without notice.
