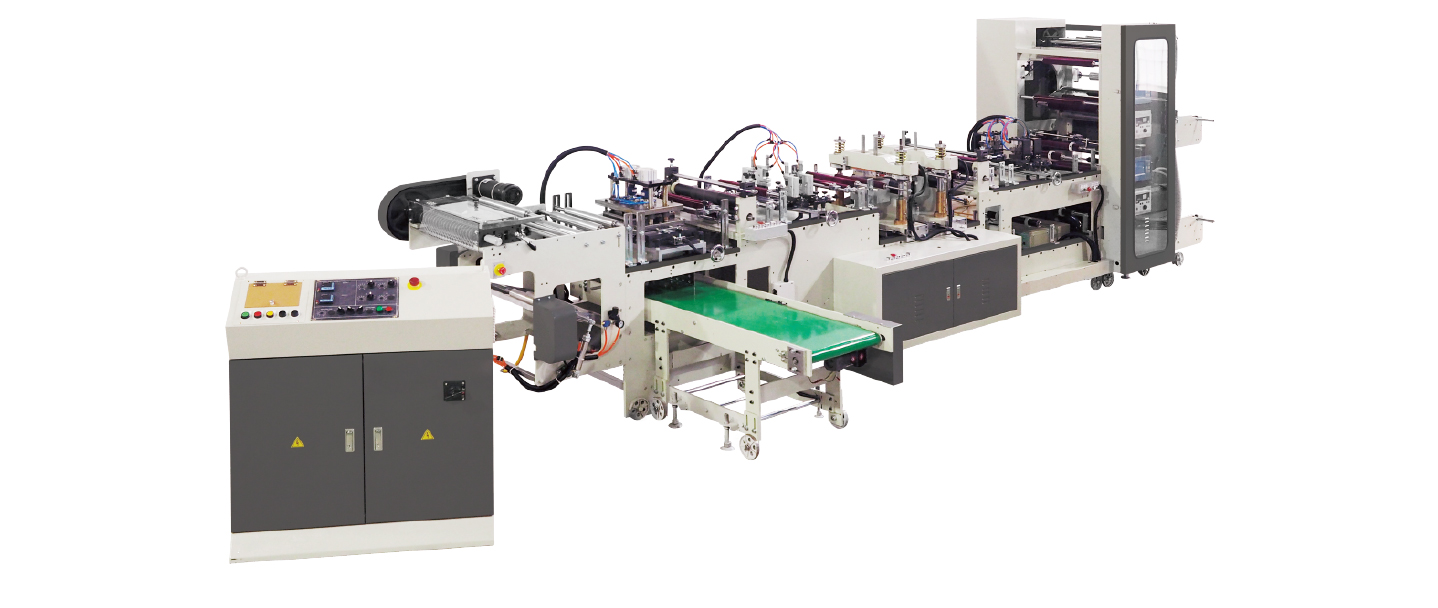

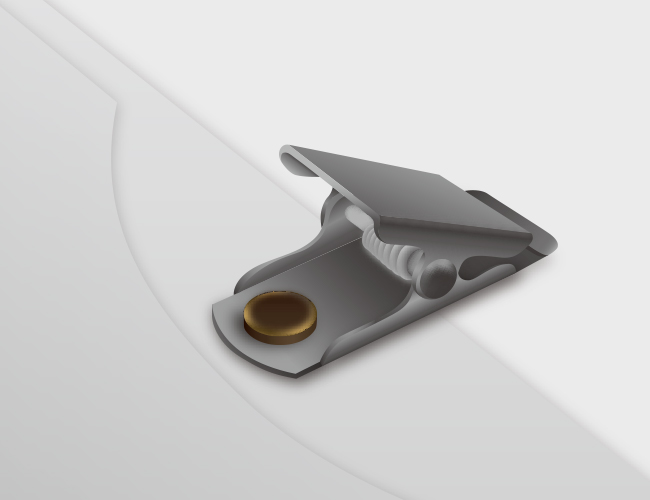

Office Badge Making Machine (Without Metal Clip)
MGA-40I-400B
Specifications
swipe your finger
| Model | MGA-40I-400B | |
| Feed material | CPP | |
| Single layer film thickness | 0.12 - 0.3 mm | |

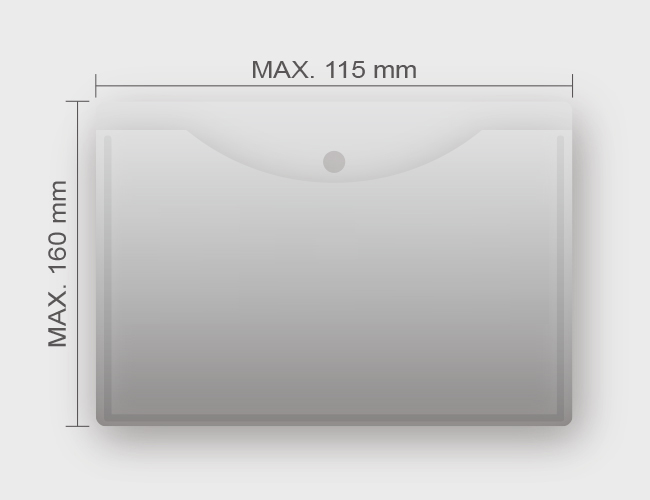

| Effective cutting size in a single mold | Max. 115 (W) X 160 (H) mm | |
| finished product design | Depend on client’s drawing. Each side required one specific mold | |
| Output |
(1) thickness 0.15mm: 25-30 cycle/min (4 products in a single cycle) |
|
| Machine Dimension | 6,935 (L) × 2,186 (W) × 2,054 (H) mm | |
| Machine Weight | 3,720 kg | |
| Required Power | 6.5 kw | |
| Optional equipment |
(1) Upgrading E.P.C system to electrical type |
|
