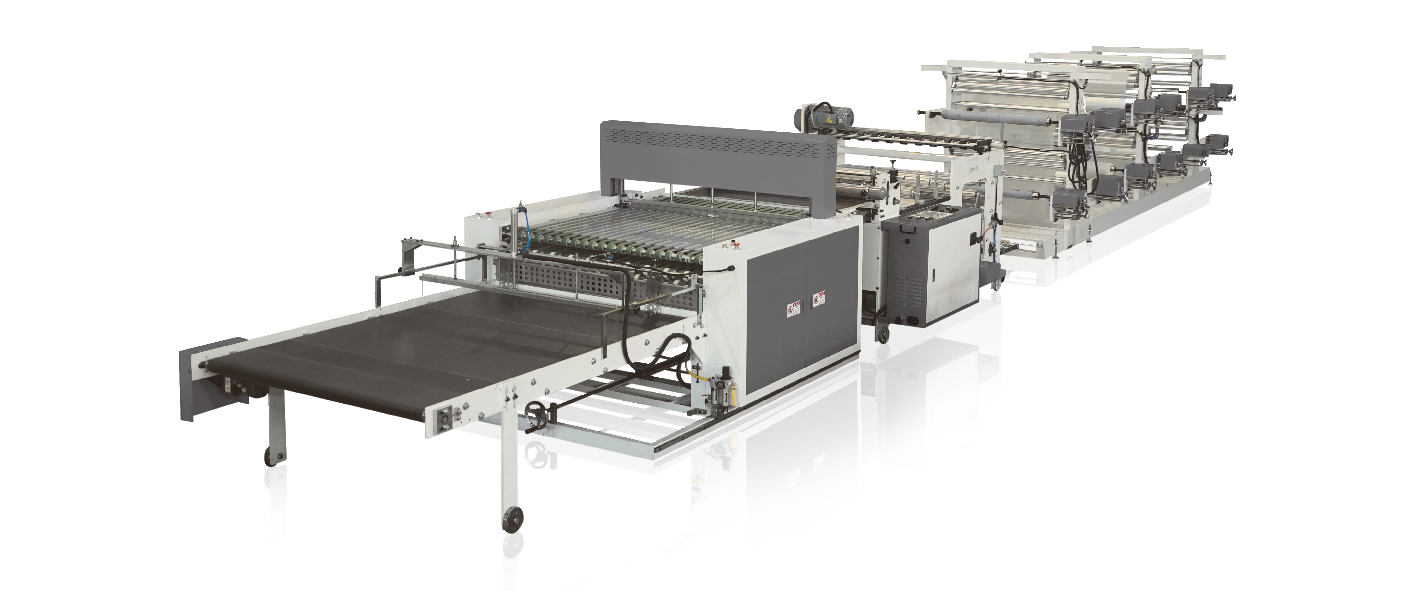

Multi-Roll Sheet Cutting and 2 Times Folding Machine
MGA-11-1200-2F
Specifications
swipe your finger
| Model | MGA-11-1200-2F | |
| Feed Material | PE Blown Film | |
| Effective Cutting Width | Max. 40 inch (1,016 mm) | |
| Effective Cutting Length | 60 - 75 inch (1,524 - 1,905 mm) | |
| Effective Folding Width | 500 - 1,050 mm | |
| Effective Folding Length | 500 - 2,000 mm | |
| Output | 10 - 20 cycle/min x 12 Sheets | |
| Single Layer Film Thickness |
0.025 x 2 x 12 Rolls = 0.6 mm (Total Thickness Can't Over 0.8 mm) |
|
| Machine Dimension | 14,440 (L) x 2,120 (W) x 1,650 (H) mm | |
| Machine Weight | 5,900 kg | |
| Required Power | 15 kw | |
