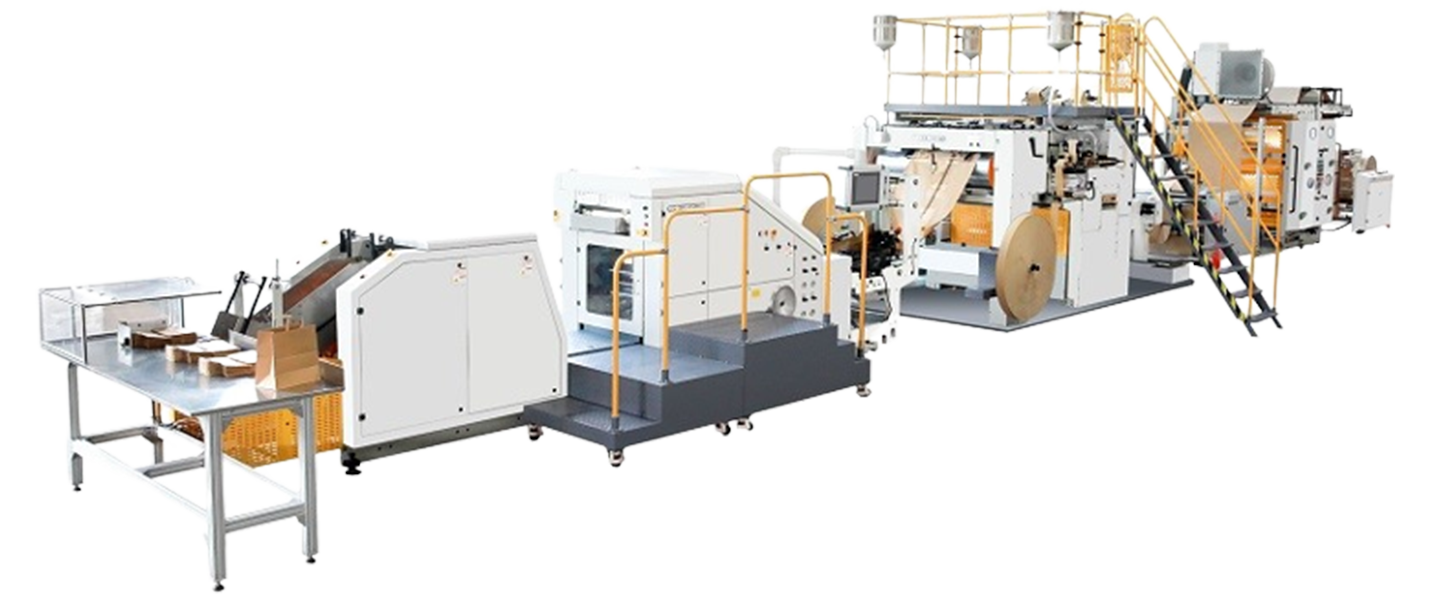

Internal Flat Handle Bag Making Machine
INH-450C-518
Specifications
swipe your finger
| Model | INH-450C-518 | |
| Paper Roll Width Range | 750 - 1310mm (690-1310mm without handles) | |
| Max. Paper Roll Diameter | ≤1500mm | |
| Material Core Diameter | 3inch (76mm) | |
| Paper Thickness | 70-160gsm | |
| Tube Length |
368 - 762mm (with handle inside bag or without handle) 368 - 662mm (flat handle stand up ) |
|
| Bag Body Width | 240 - 450mm (210-450mm without handle) | |
| Bottom Size | 120 to 260mm | |
| *Max. Speed |
Without handle: 80 - 130 bags/min
|
With handle: 80 - 120 bags/min
|
| Total Power | 31kw | |
| *Weight of Machine | ≈25000kg | |
| Overall Dimension | L16,100 mm xW4,500 mm x H 2,800 mm | |
| Main Technical for Flat handle unit |
a. Paper Thickness (Flat Handle) b. Paper Thickness (Handle Paper Patch) c. Handle Paper Patching Roll Diameter d. Handle Material Core Diameter e. Handle Paper Patching Reel Width |
80gsm-100gsm 80gsm-100gsm ф1200mm ф76mm 95mm |

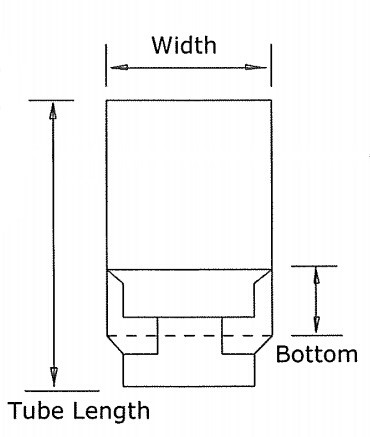

| Bottom Folding design |
 |
|
| Handle size range |
|
A: Flat Handle Height: 100 mm B: Paper Patching Width: 52 mm C: Paper Patching Length: 170 mm D: Internal Flat Handle Pitch: 109 mm E: Internal Flat Handle Width: 16 mm |
