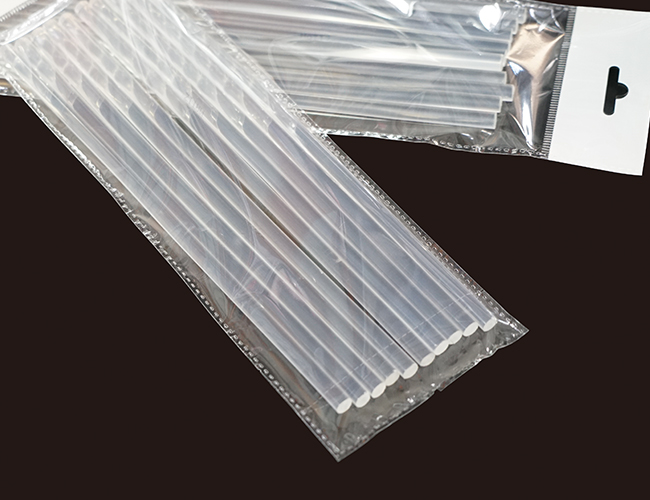

- Hot melt glue sticks packing machine count the hot melt stick and insert to the bag.

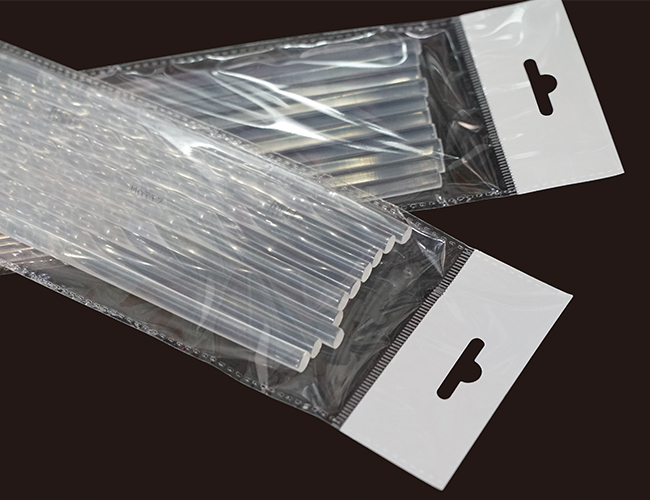

- Machine design is with the ultrasonic hanging bag design, the design of the finished bag can hang on the store.
- the machine is control by servo motor, to get very precise cutting and correct number of the hot melt stick glue
- MING JILEE provides the turnkey for the hot melt stick packing solution.
Hot Melt Glue Sticks Packing Machine
MGA-68C-400U
Features
Gallery
Specifications
swipe your finger
| General Machine Specifications | MGA-68C-400U |
| Feed Material | Hot Melt Glue Stick |
|
Effective Packgin Amount |
Ø 10.5 mm: 5 - 10 pcs / bag Ø 7.4 mm: 5 - 12 pcs / bag |
|
Effective Cutting Length |
90 - 550 mm |
| Output | 10 - 12 bag / min |
|
Machine Dimension |
5390 (L) x 2390 (W) x 1600 (H) mm |
| Machine Weight | 1760 kg |
| Required Power | 4 kw |
