Grape Bag Holes Punching and Zipper Strip Hot Lamination Side Sealing Machine

MGA-06Z-800GP

Grape Bag Holes Punching and Zipper Strip Hot Lamination Side Sealing Machine

Features

  1. The PLC controller is made in Taiwan and very stable.
  2. The size control of Grape Zipper Bag Side Sealing Machine is by servo motor. Made in Japan.
  3. Grape Zipper Bag Side Sealing Machine is equipped mark sensor for printed material.
  4. For getting the best quality of zipper bag product, unwinding station is mount the auto tension control.
  5. The individual zipper strip unwinder with motor control to get the high quality of zipper sealing quality.
  6. The ultrasonic welding station to crack the zipper on the edge of the bag for easy side sealing cutting.

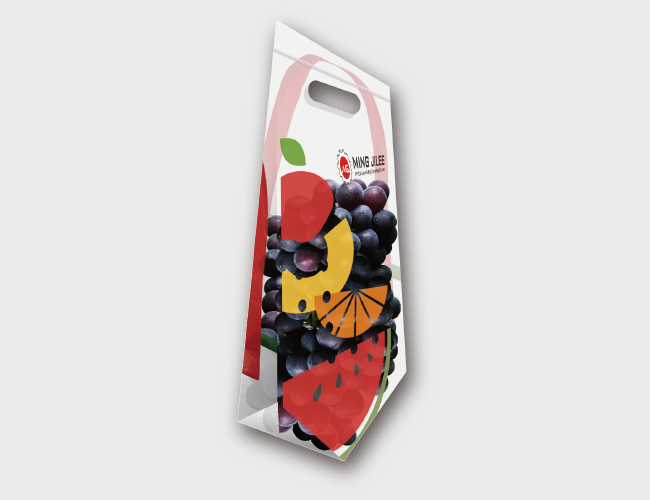

  7. V heat sealing system to make the Grape bag with flap bottom.
  8. The precise hole punching mold station to punch the holes for grape bag and cherry bag.
  9. The best design of Grape Zipper Bag Side Sealing Machine, made in Taiwan.

Specifications

swipe your finger

Model MGA-06Z-800GP
General Machine Specifications
Machine Dimension 12,000 (L) x 2,000 (W) x 2,250 (H)mm
Machine Weight 6,470 kg
Required Power 11 kw
Machine Performance
Feed Material PP /PE / EVA
Single Layer Film Thickness 0.02 - 0.08 mm
Effective Bag Size Range
a. Standard Zipper Bag 85 - 600 (W) x 150 - 550 (L) mm
b. Grape Bag 85 - 600 (W) x 150 - 320 (L) mm
Output
a. Standard Zipper Bag 40 - 100 pcs /min (depend on size and thickness)
b. Grape Bag 40 - 65 pcs /min (depend on size and thickness)
