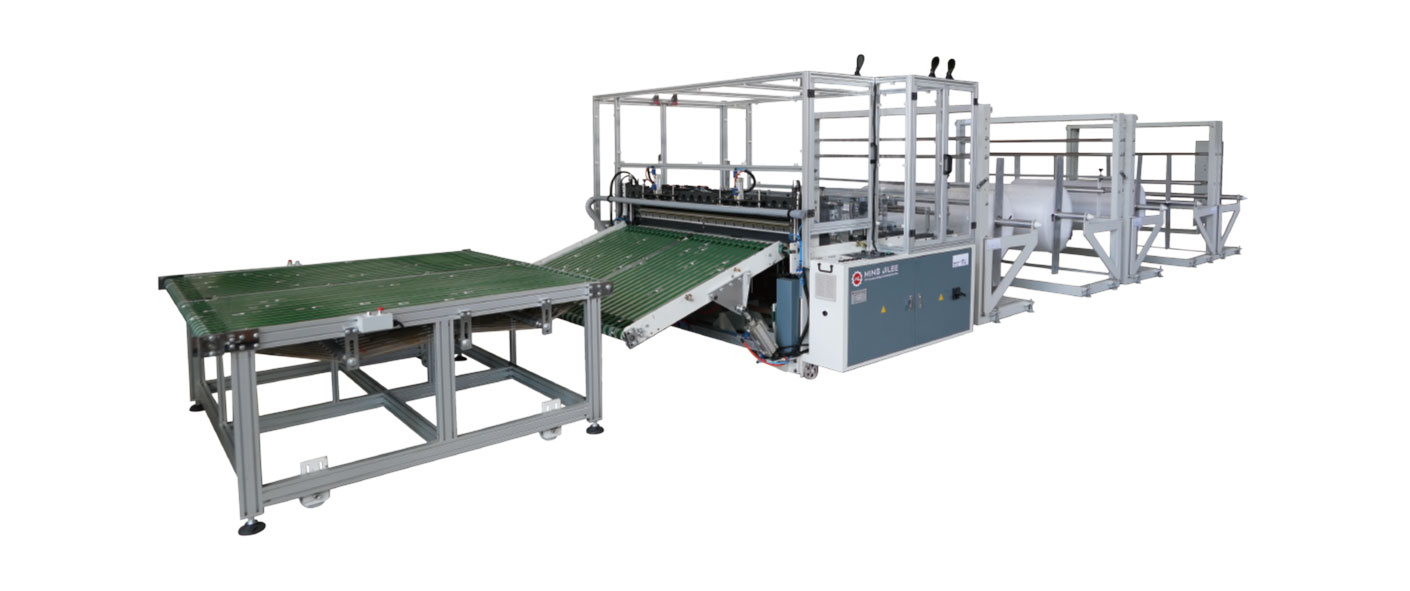

EPE / Air Bubble Film Slitting and Cutting Machine

MGA-35-1760

Specifications

swipe your finger

Model MGA-35-1760
General Machine Specifications
Machine Dimension 14,600 (L) × 2,850 (W) × 1,950 (H) mm
Machine weight 4,910 kg
Required power 11 kw
Machine Performance
Feeding material Air bubble /EPE
Effective cutting width 100 - 1600 mm
Effective cutting length 100 - 1000 mm (with adjust angle conveyor)
Effective cutting length 2,000 meter (straight conveyor collecting)
Max. feeding roll quantity 5 rolls
Output 20 - 80 cycle / min
