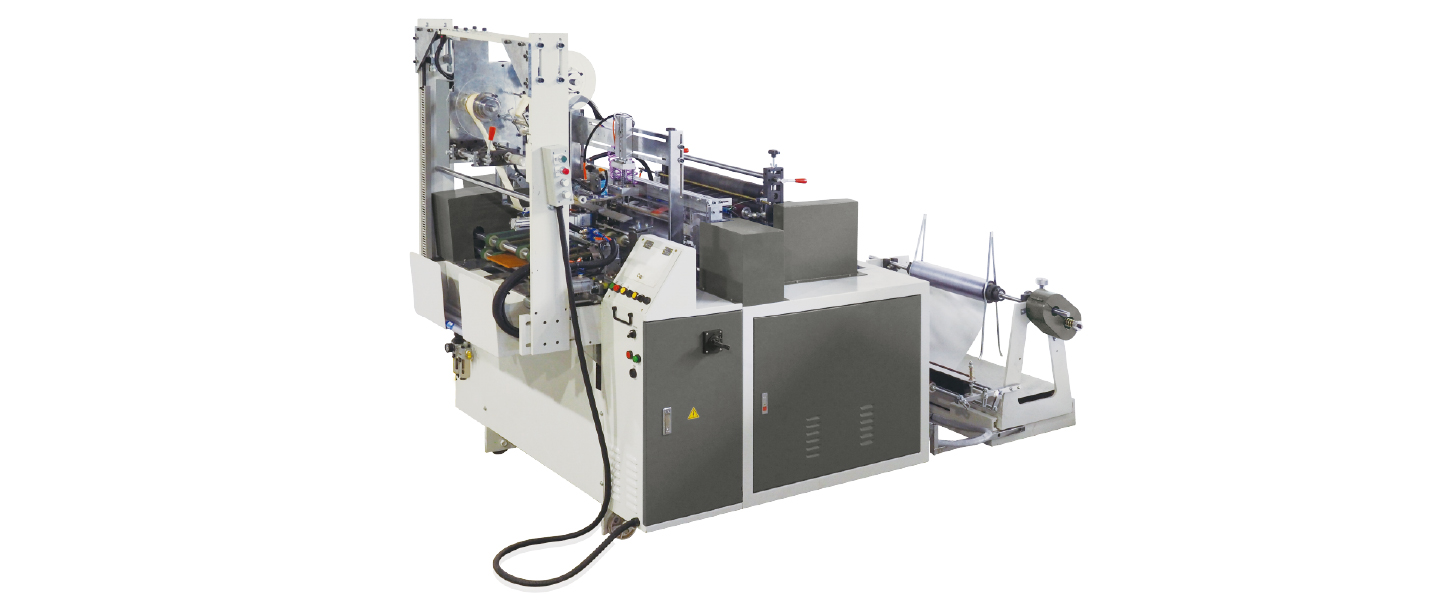

Book Cover Wrapping Machine

MGA-35A-600

Specifications

swipe your finger

Model MGA-35A-600
Feed material
CPP
Single Layer Cutting Thickness PP: 0.04 - 0.08 mm
Effective Rewinding Width 340 - 500 mm
Effective Rewinding Length 1,000 - 5,000 mm
Max rewinding speed 50 meter/min
Output (including cutting time)

(1) Length: 1,000 mm : 9 - 10 pcs/min
(2) Length: 2,000 mm : 9 - 10 pcs/min
(3) Length: 3,000 mm : 8 -   9 pcs/min

Machine dimension 3,510 (L) × 2,270 (W) × 2,230 (H) mm
Machine weight 1,550 kg
Required power 6 kw
Optional equipment Sticker labeling system (Servo motor control)
Remarks As we continuously keep working on research and improvement, we preserve the right to change all of the specifications, design and characteristics on this catalogue without notice.
