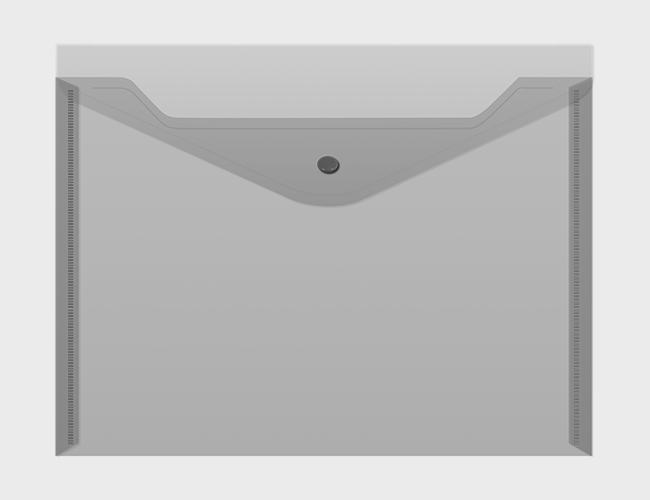

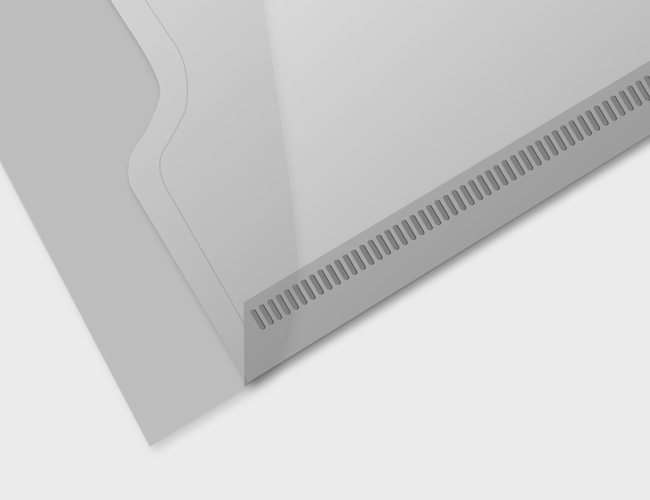

- Special designed for my clear bag (209), PP envelope, PP button envelope production. It is fully automation machine from the material in roll form to produce my clear bag (209), PP envelope, PP button envelope. Machine saving the labor cost and increase the production output.
- High quality machine component with control and monitoring system, automatically stop when any problem occurred, prevent the material waste and protect the machine.

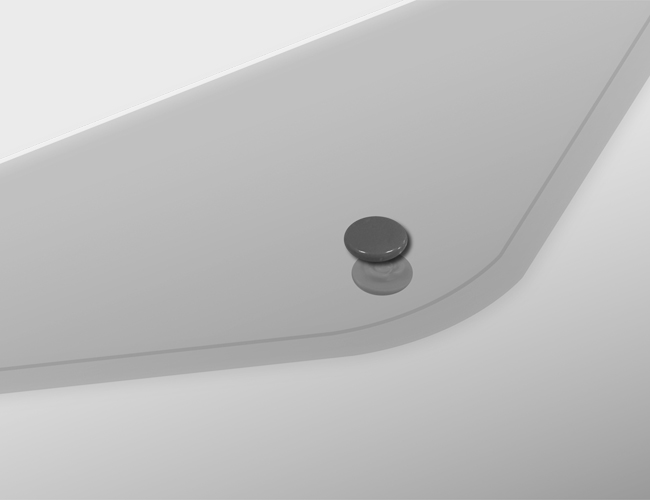

- Machine is equipped the high precise button riveting machine. The performance of machine make low failure rate, ensuring the button position is precise.
- Optional precise punching mold is allowed machine producing different size of clear bag (209), PP envelope, PP button envelope.
Auto My Clear Bag Machine (Side Folded Type)
MGA-70C-700SPH
Features
Gallery
Specifications
swipe your finger
| Model | MGA-70C-700SPH | |
|
Feed material |
PP in roll form | |
| Single layer film thickness | 0.14 - 0.2 mm | |
| Effective cutting size | A4 | |
| Output | 20 - 35 pcs/min | |
| Machine dimension | 13,500 (L) × 2,300 (W) × 2030 (H) mm | |
| Machine weight | 5,300 kg | |
| Required power | 12 kw | |
| Optional equipment |
(1) Additional punching mold for A5 : (depend on the drawing) (2) Additional punching mold for FC : (depend on the drawing) (3) Sticker labeling system (Servo control type) |
|
| Remarks | As we continuously keep working on research and improvement, we preserve the right to change all of the specifications, design and characteristics on this catalogue without notice. | |
