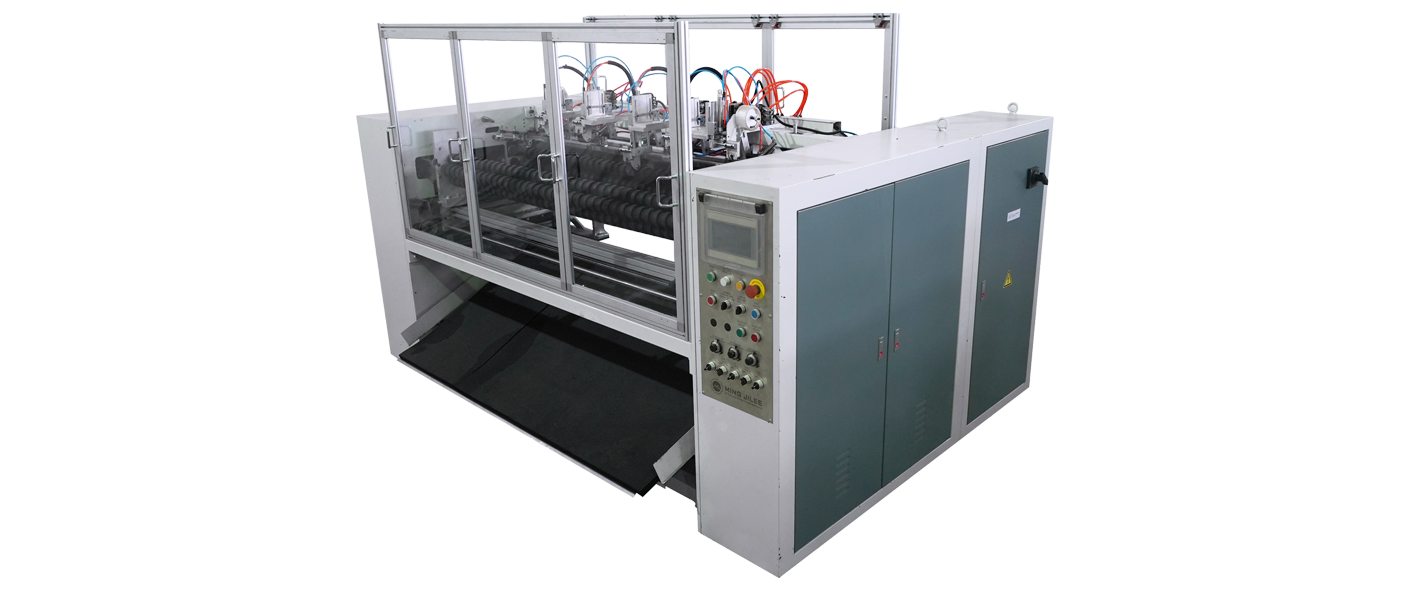

Engineered for both efficiency and sustainability, MINIROLL-1600 features an integrated heat needle sealing system, replacing traditional tape sealing to significantly reduce plastic waste. A cantilever shaft design allows quick and effortless loading of the mother roll, greatly improving operational convenience. Recognized as one of the most efficient and reliable rewinding machines in Taiwan, it delivers consistent performance in demanding production environments.
To ensure maximum reliability, the rewinding unit includes a proximity switch control that automatically stops the machine in case of malfunction, reducing downtime and safeguarding product quality. The system also features a fully motorized nip roll cylinder and a built-in pneumatic cutting mechanism, guaranteeing stable material feeding and precise cutting. For enhanced flexibility, this upgraded version offers an optional tape dispenser to seal finished rolls, combining improved safety with higher production efficiency.
- Purpose-built for rewinding air bubble film (bubble Ø 10 mm) and EPE foam (thickness 1–5 mm)
- Integrated heat needle roll sealing system
- Optional tape dispenser for sealing finished rolls
- Maximum mother roll diameter: 1,500 mm (up to 30 kg per roll)
- Production width range: 300–1,600 mm
- Finished roll length: 3–55 m
- Rewinding diameter range: 80–420 mm
