PP File Folder Making Machine

(MGA-70-700PHZ) 6 in 1 Multi-Function File Folder Machine

PP File Folder Making Machine

Features

  1. This pp file folder making machine is designed especially for adhesive bag, name card album, my bag, book cover, sheet protector and L-File(E310).It may be completed on fully automatic production from material in-feeding to finished product which will save labor cost and increase production capacity.
  2. This machine uses high quality and high performance parts to incorporate with all kinds of controlling and monitoring system. If there is any trouble presented on the machine during operation, it will automatically stop and alarm to avoid wasting raw material and to protect the machine.
  3. The sealing equipment is of special removable silicone ring belt design this may enable the data pocket to be in different specifications and types. The purpose of application covers a wide range.
  4. The sealing equipment uses multiple sets of ultrasonic sealer to ensure sealing for product to be elegant, tightened and trim.
  5. In-feeding stand uses auto. edge tracing device and auto. tension controller, it is easy and convenient to operate.

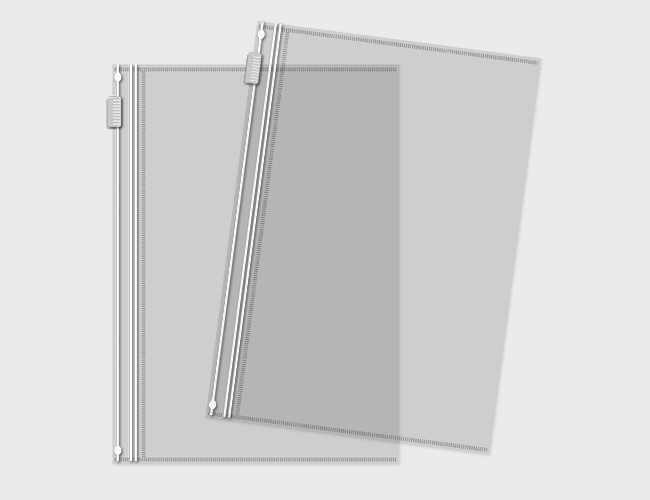

  6. In addition to above 6 products, this machine which incorporates computer operation can make zip-slide bag and CD pocket with different molds.

Specifications

swipe your finger

Model MGA-70-700PHZ
Feed material
PP, PE
Effective cutting width 150 - 600 mm
Effective cutting length 90 - 550 mm
Single layer film thickness 0.035 - 0.1 mm

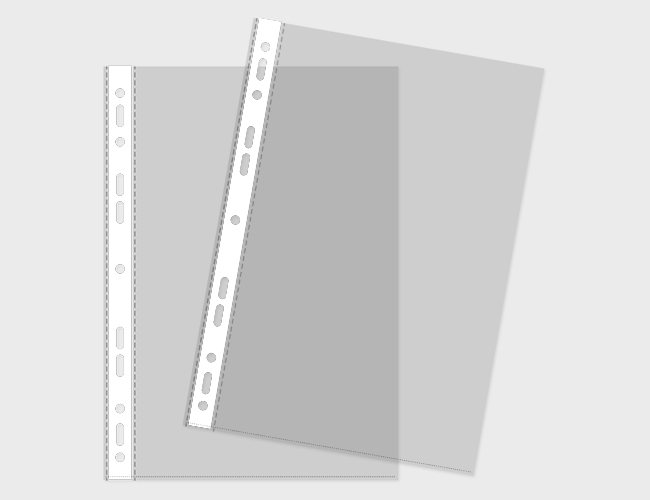

Output (1) Sheet protector : 50 - 100 pcs/min

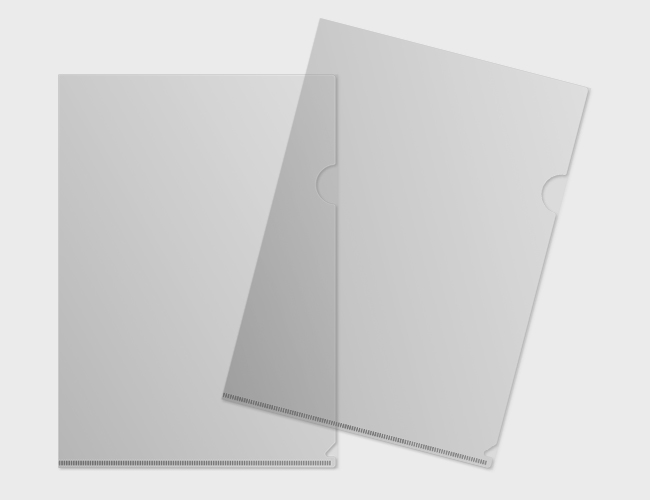

(2) L shape Folder (E-310) : 30 - 50 pcs/min

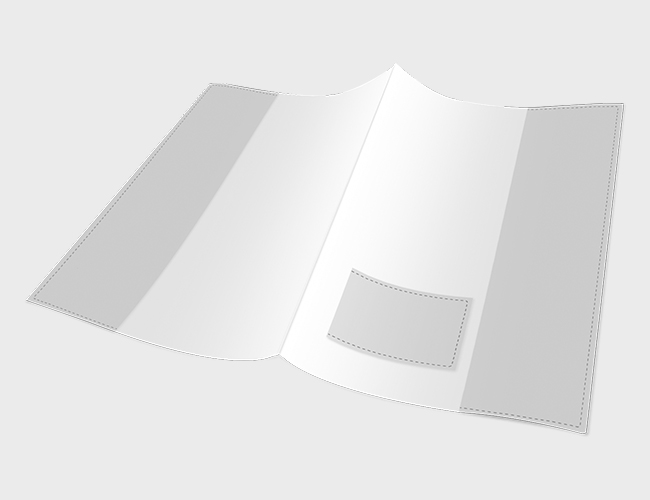

(3) Book cover : 50 - 100 pcs/min
(4) Adhesive poly bag : 50 - 100 pcs/min
(5) Inside pocket : 50 - 100 pcs/min
Required power 8 kw
Optional equipment (1) Printing sensor (photo cell) : 1
(2) 3″ air shaft of unwinding : 1
(3) Zipper bag production : 1
(4) Envelop bag production : 1
(5) Electronic E.P.C : 1
(6) Auto. Tension controller : 1
(7) Precise cutting mold with R corner design : 1
Remarks As we continuously keep working on research and improvement, we preserve the right to change all of the specifications, design and characteristics on this catalogue without notice.
