MGA-35-1760

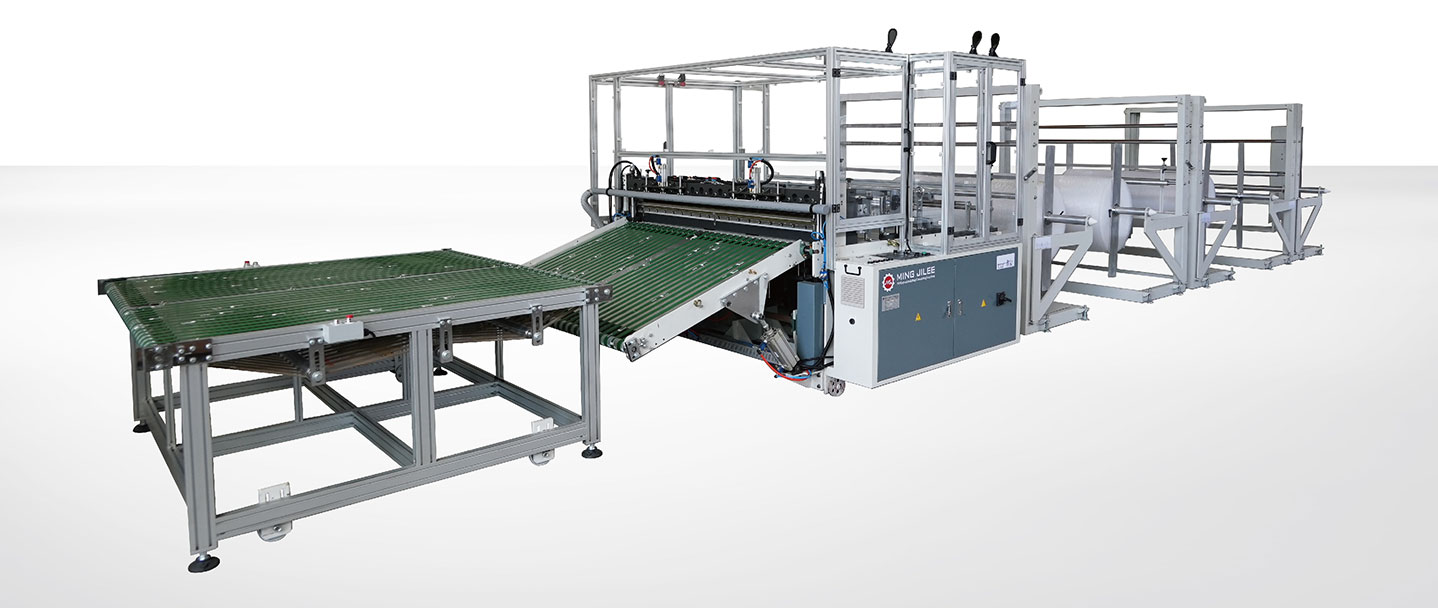

EPE / Air Bubble Film Slitting and Cutting Machine
MGA 35 1760
swipe your finger
General Machine Specifications | |
Machine Dimension | 14,600(L) x 2,850(W) x 1,950(H) mm |
Machine Weight |
4,910 kg |
Required power | 11 kw |
Machine performance | |
Feeding material | Air bubble / EPE |
Effective cutting width |
100 - 1600 mm |
Effective cutting length | 100 - 1000 mm (with adjust angle conveyor) |
Effective cutting length | 2,000 meter (straight conveyor collecting) |
Max. feeding roll quantity | 5 rolls |
Output | 20 - 80 cycle / min |
